| Standard or Nonstandard | BS 1873, ANSI B16.34, Customer's drawings |
|---|---|
| Structure | Globe |
| Pressure | 150LB-2500LB |
| Operator | Lever, Gear, Pneumatic, Motorized, Hydraulic |
| Material | ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M |
| Temperature of Media | Depends on body material |
| Port Size | 2 inch - 36 inch |
| Place of Origin | Zhejiang, China |
| Connection | Flanged, Welded |

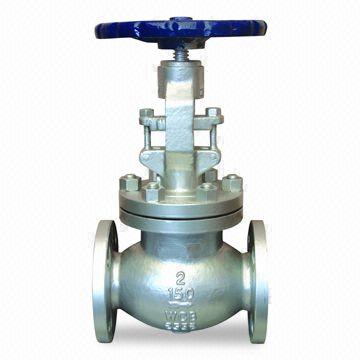

Product Description
The design of carbon steel globe valve is excellent in the world. In order to seal reliably, body employs ball type structure, seat and disc employ conical seal structure. That assures the quality and long life time.
Size: 2 inch-36 inch
Pressure: Class 150-2500
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M
Standards:
Structural Formation: BB-OS & Y
Design and manufacture: BS 1873, ANSI B16.34, Customer\\\'s drawings
Inspection and test: API 598
End flange dimension: ANSI B16.5
BW end dimension: ANSI B16.25
Pressure-temperature rating: ANSI B16.34
Type of connection: RF, BW
Type of operation: Hand wheel, Lever, Gear, Pneumatic, Hydraulic, Electric
